Introduction

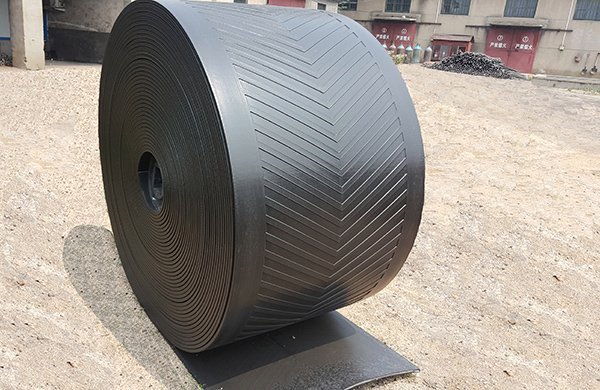

Chevron conveyor belt is designed to convey loose, bulky or bagged  materials on inclined surface at angles of less than 40 degrees.

※ Anti-slip & Excellent drainage character

※ Cleats and top cover rubber are vulcanized integrally

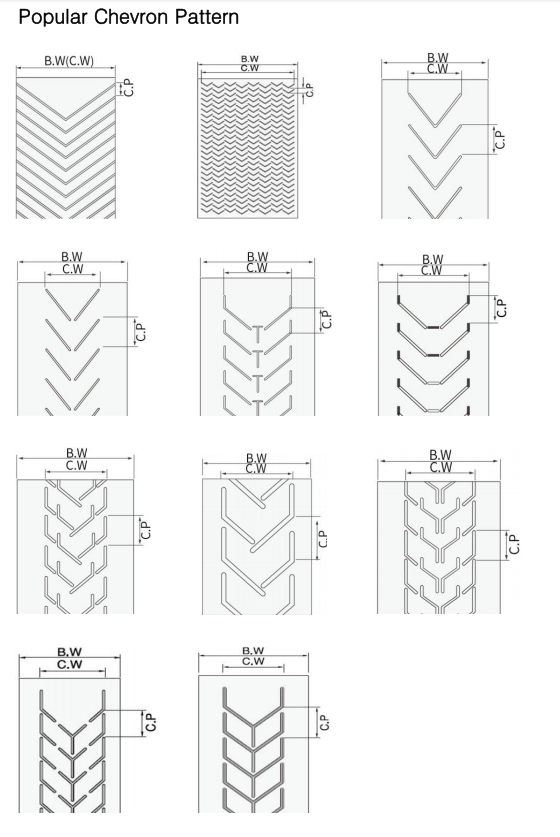

※ Cleat patter, angle and pitch are designed elaborately

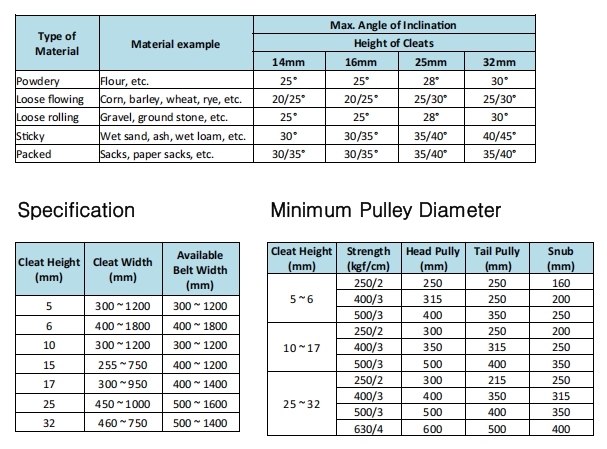

Selection

Selection of a type and height of cleats depends on the material to be conveyed and the angle  of inclination:
