Product Description

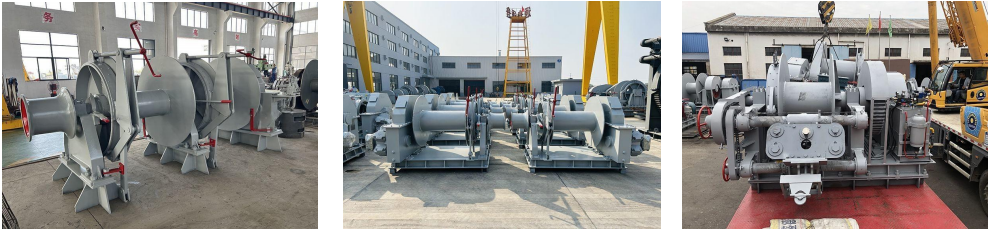

Our electric and hydraulic anchor-mooring combined windlass and standalone mooring winches are core heavy-duty marine deck machinery. The combined windlass integrates anchor lifting and mooring functions, assembled with power unit, actuator and control system; while mooring winches focus on rope-winding and berthing operations. Both electric-driven and hydraulic-driven versions are available. Built with high-strength marine castings and precision gear transmission, the series covers a broad load range to fit vessels from small workboats to large tonnage commercial ships. Custom engineering is supported to satisfy class society certification requirements for diverse marine projects.
Key Features
Integrated & modular structural design:
The combined windlass unites anchor hoisting and mooring functions in one unit, and separate mooring winch adopts modular construction. Both electric and hydraulic drive options accommodate different vessel power configurations and deck layout limits.
High‑load stable pulling performance:
Heavy‑duty gear reducer and robust housing deliver powerful pulling force. Equipped with safe and reliable braking assemblies, the equipment holds load steadily under continuous deck operation against seawater corrosion and frequent start‑stop cycles.

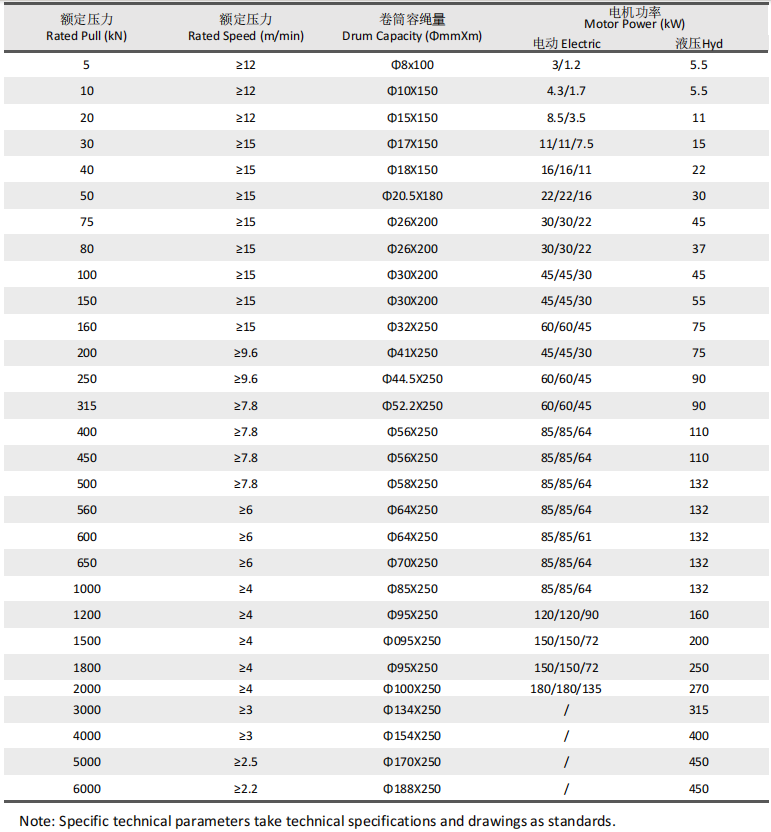

Complete wide‑range parameter portfolio:
Multiple load grades cover small‑scale working vessels up to large bulk carriers, tankers and offshore vessels. Various chain diameters, wire‑rope sizes and drum capacity selections meet different mooring and anchor‑lifting demands.
Operational safety & convenient servicing:
User‑friendly control system ensures straightforward field operation. Standardized core components simplify daily inspection, on‑board maintenance and spare‑parts replacement to lower vessel operating costs.
