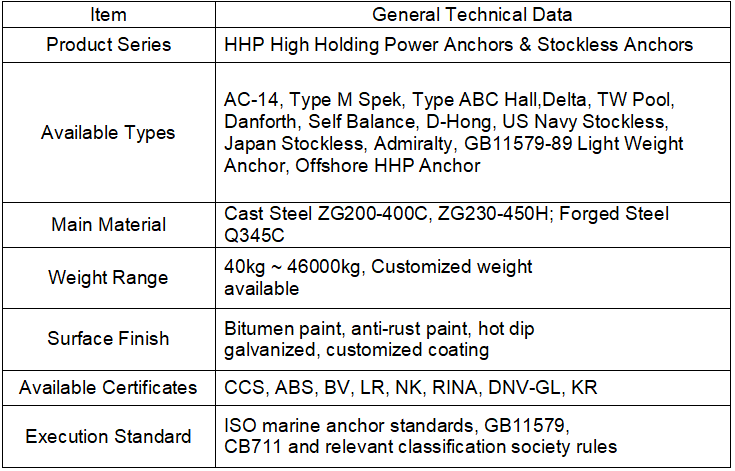

General Specification

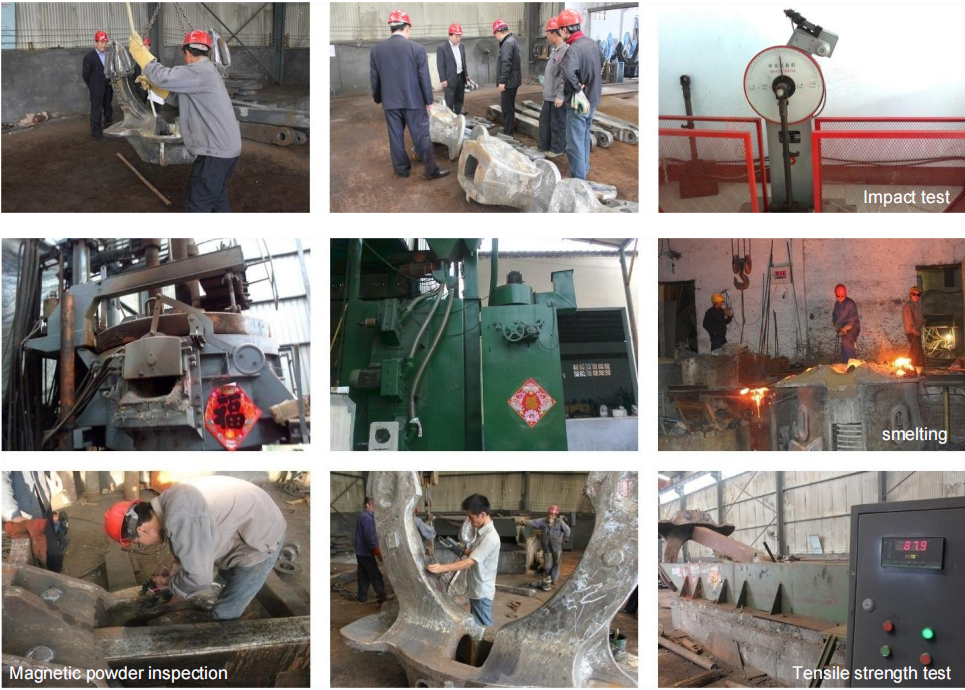

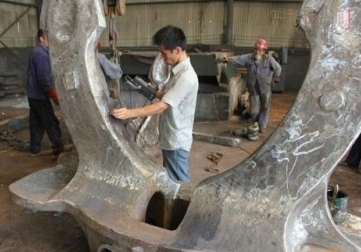

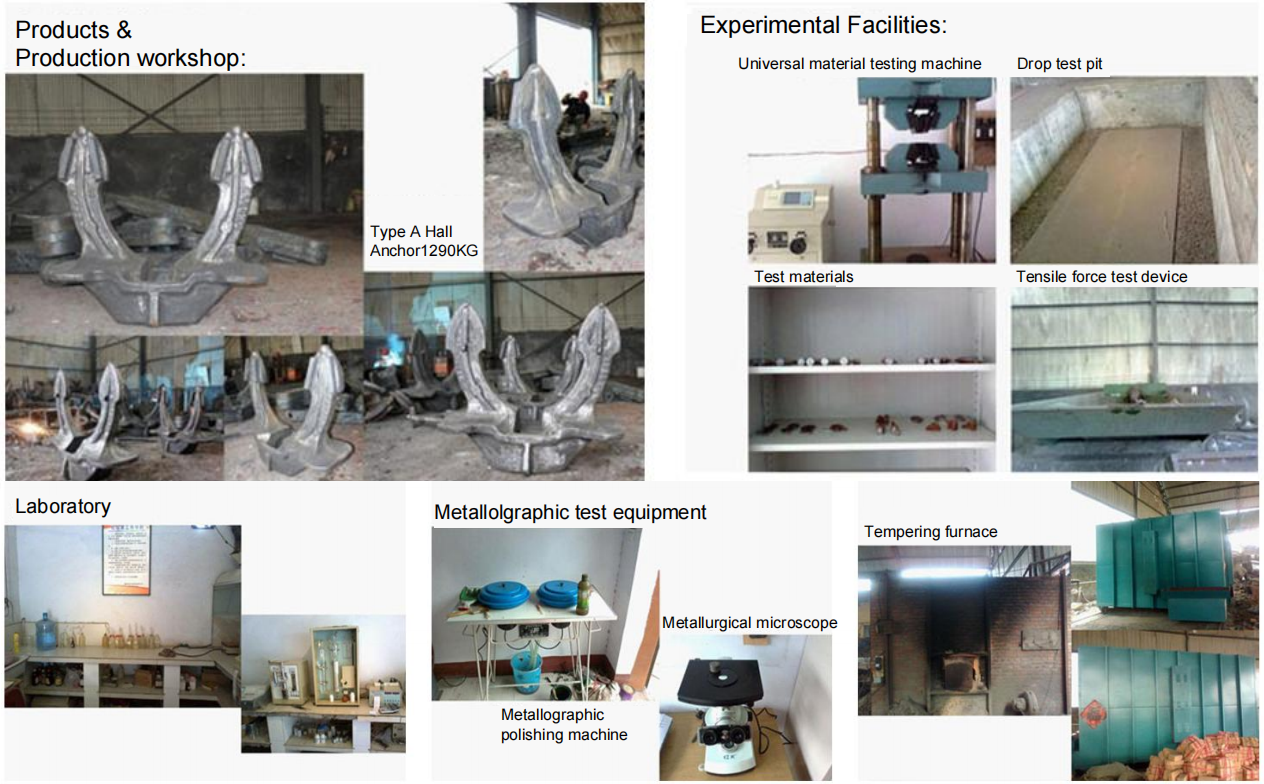

Workshop Equipment and Test Facilities

Application

vOcean-going vessels: Container ships, bulk carriers, oil tankers, car carriers and general cargo ships, used as bow main anchors.

v Special marine craft: Engineering ships, dredgers, offshore working vessels, barges and floating platforms for positioning mooring.

v Small & medium watercraft: Fishing boats, sailing vessels, yachts and inland water transport ships.

v Offshore projects: Temporary mooring for offshore facilities, marine pipeline construction and coastal engineering operations.

The anchors fit various seabed substrates including mud, silt, sand, clay and gravel. Different anchor types can be selected to match working water depth, seabed conditions and vessel tonnage.

Features

Raw Material Option:

Cast steel ZG200-400C / ZG230-450H; Forged Q345C high tensile steel available for selection.

· Advanced Manufacturing:

Precision casting or integral forging; full penetration welding for welded HHP anchors; overall heat treatment & high-frequency quenching to achieve high hardness and impact resistance.

· Excellent Performance:

High holding power-to-weight ratio; stable penetration into seabed; strong anti-overturn capability; reliable gripping performance.

· Marine Anti-corrosion:

Surface treatments include black bitumen paint, anti-rust paint, hot-dip galvanizing, customized coating solutions.

· Complete Specification Range:

Nominal weight covers 40kg up to 46000kg; custom dimensions and weights are acceptable.

· Class Society Certified:

Products can be certified by CCS, ABS, BV, LR, NK, RINA, DNV-GL, KR and other mainstream classification societies.

· Easy Operation & Storage:

Optimized structural design for smooth anchor lifting; most stockless anchors fit standard ship anchor hawsepipe, avoiding hull plate damage during retrieval.
