Product Description

Our electric & hydraulic anchor and mooring capstans are heavy - duty marine deck machinery, engineered for anchor lifting, rope warping and vessel mooring operations. Available in vertical- motor and horizontal-motor electric versions as well as hydraulic vertical configurations, this full - series product covers a wide range of working loads and warping capacities to match different vessel sizes. Built with marine - grade castings and robust gear transmission systems, these capstans withstand harsh offshore and coastal working conditions, delivering stable pulling performance for anchor handling, berthing, mooring and rope - pulling work. Customized dimensions and power options are supported to comply with mainstream marine classification society requirements.

Key Features

·Diverse power & structural options: Offer electric vertical-motor, electric horizontal-motor and hydraulic vertical types. Users can select suitable drive forms according to vessel deck layout, power supply condition and working habits.

·Reliable heavy-load performance: Adopt high-strength gear reduction assemblies and marine-qualified housings. It maintains steady output under rated working load, resisting vibration, seawater corrosion and frequent start-stop on deck.

·Wide- range parameter coverage: Complete product spectrum covers small to large load grades. It supports varied chain diameters, wire rope sizes and speed settings, adapting to workboats, cargo ships and other marine platforms.

·Easy operation & maintenance: Compact deck-mounted structure with simple control logic. Core components are standardized for convenient inspection, part replacement and daily onboard servicing.

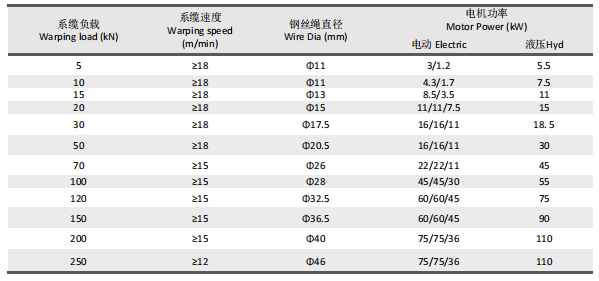

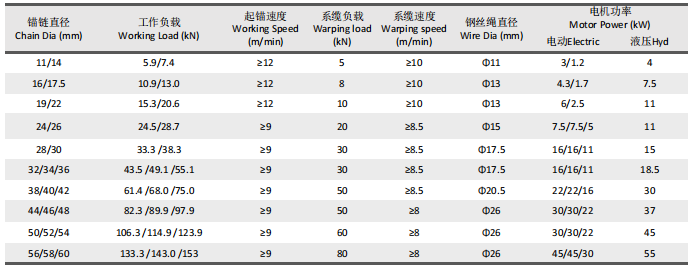

Tecnical Data Sheet

Note: Specific technical parameters take technical specifications and drawings as standards.

     Shark Jaw

Shark jaw is a widely used marine safety equipment for various types of ships. lts main function is to hold the cable or

steel rope tightly, preventing the cable, steel rope, and anchor chain from sliding.

The shark jaw device consists of a shark jaw installed on the stern deck, a cable blocking pile, a tail drum, a hydraulic

pump station, and an electrical control system.The shark jaw device designed by AGOS for the three purpose tugboat is

responsible for three major tasks: towing, anchoring, and supply.In order to safely, quickly, and effectively carry out anchor

lifting operations for drilling platfoms, the newly designed three purpose tugboats are all equipped with shark pliers devices.
